Waterproof Flat Rubber Submersible Pump Cable with EPR/NBR Insulation and 450/750V Rated Voltage for -40°C to +60°C

Name: Waterproof Flat Rubber Submersible Pump Cable with EPRNBR Insulation and 450750V Rated Voltage for 40C to 60C
Brand: Minfeng
Price: 0.1 USD

Best Waterproof Flat Rubber Submersible Pump Cable with EPR/NBR Insulation and 450/750V Rated Voltage for -40°C to +60°C wholesale

Brand Name : Minfeng

Model Number : submersible pump cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Insulation : EPR/NBR

Standard : VDE CE CB CCC

Color : Black, Red, Yellow, Blue (varies)

Sheath Material : PCP/CPE

Rated Voltage : 450/750V,300/500V

Temperature Range : -40°C to +60°C(90°C max)

Contact Now

Waterproof Flat Rubber 3-4 Core Submersible Water Deep Well Pump Flat Power Wire and Cable

Product Overview

Size 1.5-800mm² / 18-10AWG

Conductor Material Copper

Insulation Material Rubber

Jacket Rubber

Application Industrial

Type Low & Medium Voltage

Voltage 450/750V to 18/30KV

Working Temperature -40°C to +90°C

MOQ 100m

Warranty 1 Year

Product Features

Conductor: Class 5 flexible plain copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
Cores: 1, 2, 3, 4, 5 cores or others
Voltage: 450/750V, 300/500V
Temperature Rating: Conductor operation temperature -40°C to +60°C (90°C max)

Applications

Suitable for various types of lead wire for submersible motors (lead from underwater to above-water)
Can be equipped with waterproof joint (available upon request)
Convenient in use with excellent waterproof properties
Protects motor from water damage even with external cable damage
New type of waterproof cable technology

Product Images

Waterproof Flat Rubber Submersible Pump Cable with EPR/NBR Insulation and 450/750V Rated Voltage for -40°C to +60°C

Technical Specifications

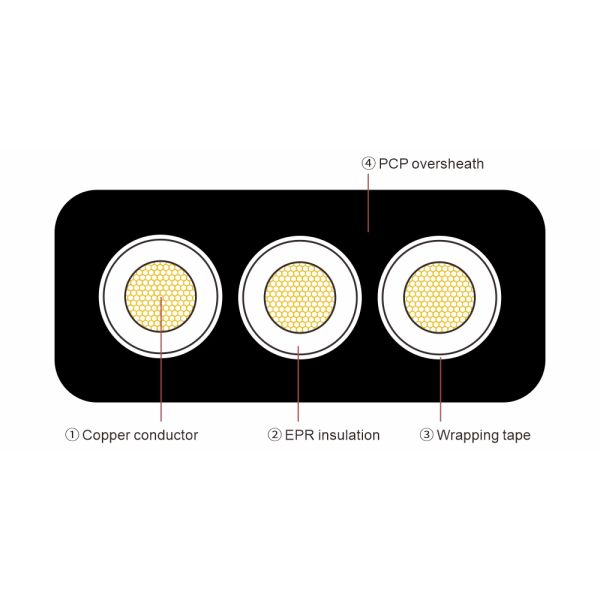

Flat Submersible Water Pump Cables

Conductor Size (AWG)	No of Conductor	Nos of Dia. Of Wire	Ground Conductor Size (AWG)	Core Dia (MM)	Nominal Sheath Thickness (MM)
14	3	41×0.254	14	3.85	1.15
12	3	65×0.254	12	4.5	1.15
10	3	105×0.254	10	5.3	1.15
8	3	168×0.254	10	6.5	1.4
6	3	226×0.254	8	8	2
4	3	420×0.254	8	10.1	2
2	3	665×0.254	6	11.3	2.2
1	3	817×0.254	6	13.6	2.2
1/0	3	1045×0.254	6	15.6	2.2
2/0	3	1330×0.254	6	18	2.2

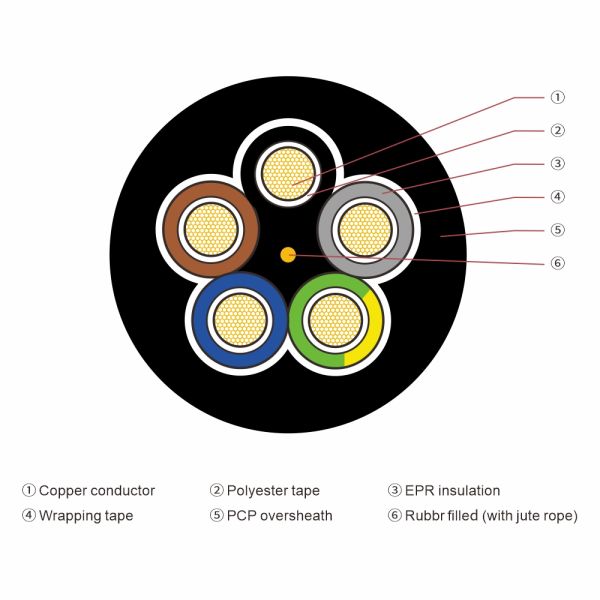

JHS Round Submersible Water Pump Cable

Conductor Area (mm²)	Nos. & Dia. of Wire	Nominal Core Dia (mm)	Overall Dimensions 3 Core (mm)	Overall Dimensions 4 Core (mm)	Current Rating at 40°C (Amps)
1.5	22/0.30	3.25	10	10.8	14
2.5	36/0.30	3.84	11	12.5	18
4	56/0.30	4.5	13	14.1	26
6	84/0.30	5.3	14.6	16	31
10	140/0.30	6.5	18	20.35	42
16	224/0.30	8	21.2	23.4	57
25	350/0.30	10.1	26	28.8	72
35	490/0.30	11.3	28.3	31.5	90
50	703/0.30	13.6	33.5	37.3	115
70	988/0.30	15.3	37.8	42.2	143
95	1349/0.30	18	43.5	48.8	165
